Bottle Blowing Filling Capping Combiblock Machine

Combiblock Water Filling Machine is innovative technology whole process from Blower, filler and capper combined to one block.
0.5l bottle capacity is 12,000bph to 54,000bph
And 4l 5l Capacity is 4000bph to 6000bph
15L 19l Capacity is 1500bph to 3600bph
Our combi block machine single cavity capacity can reach 2000bph to 2500bpb .

Bottle Blowing Filling Capping Combiblock Machine

The soft drink filling machine with blowing-filling-capping combiblock lines are becoming more popular because they reduce the footprint over multiple standalone systems. Newamstar blowing-filling-capping combiblock is designed and engineered as a single smart solution for bottled water and carbonated soft drink manufacturers, It features integrated data-driven intelligence, ensuring optimum performance across the entire production process.

Capacity:28000bph to 36000bph

The innovative packing technology with a single unit machine to complete the whole process from preform to bottled liquid products.

Blower, filler and capper combined to one block, improves sanitary conditions, reduce cross contamination, increase running effieciency, and reduce energy consumption.

Blowing part

Technical Innovation

1. Optimized cam curve;
2. Reduced noise, more stable;
3. Energy saving, environment friendly;
4. Preform electrostatic dust removal,optimized bottle neck protection;
5. Bottle neck camera inspection;
6. Preform dumper;
7. Cap electrostatic dust removal;
8. Servo motor stretching;
9. Mechanical bottle mouth sealing.

Technical Innovation

1. High revolving speed, and hightorque servo-motor

2.Installationbase for electrohydraulic servo cylinder

3. Electrohydraulic servo cylinder assembly
4. Stretch rod
5. Mechanical bottle neck seal & high pressure valve assembly

Washing Filling Capping

The soft drink filling machine machine is mainly used in the water filling operations. The three functions of bottle rinsing, filling and capping are composed in one body of the machine. The whole process is automatic. The machine is used in filling mineral water and purified water in bottles made of polyester and plastics.

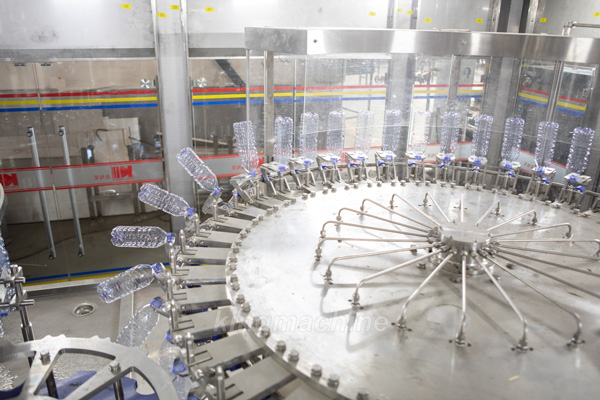

Washing headsThe rotary disk is fully made of SUS304 stainless steel. Using imported special efficient spray nozzle, the washing water will be sprayed in a particular angle, can wash any part of the inner wall, rinse with water thoroughly and save flush bottle. Bottle clamp and lifting mechanism of sliding sleeve adopts Germany Igus corrosion resistant bearing without maintenance. Washing part moves by a frame in the transmission system through the gear transmission.

Mechanical or volumetric electronic filling valve;Tubular type filling bowl no dead angle, easy to clean;Automatic CIP, easy for operation and maintenance;Raise filling temperature above 12~15°C for energy saving;Volumetric valve leads to high filling precision,5~6 times higher than mechanical valve;Volumetric valve filling can realize fast changeover, no vent tubes.

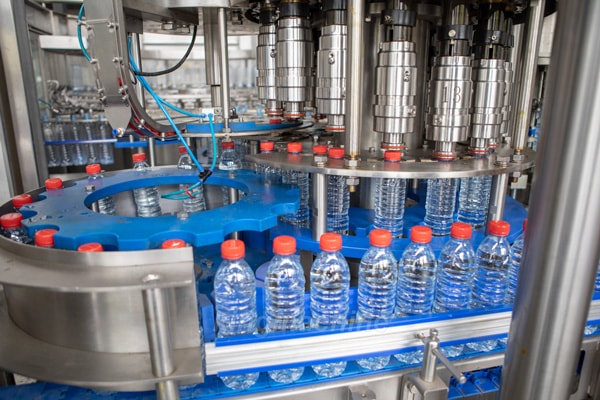

Capping headsThe capping machine is the highest precision in 3-in-1 unit machine, on the reliability of equipment operation, has enormous influence on the defective rate of the product.Introduced the world’s most advanced Italian AROL capping machine technology, combining with the filling machine production experience improvement, and ask college of Shanghai Jiao Tong university mechanical engineering institute of electrical and mechanical design and automation technology of experts and professors to help design.
